HX20EPL Semi Auto Elastic Pen Loop Applying Machine is a specialized machine designed to apply one elastic pen loop onto notebook

Name: HX20EPL Semi Auto Elastic Pen Loop Applying Machine is a specialized machine designed to apply one elastic pen loop onto notebook
Brand: HXCP
Price: 1 USD

Packaging Details : Stretch Film with Wooden Case

Delivery Time : 30 work days

Certification : CE

Capacity : 1000-1200pcs/h

MOQ : 1 set

Payment Terms : L/C, D/A, D/P, T/T, Western Union

Case Thickness Range : 1-3.5mm

Voltage : 220V, 50/60Hz

Brand Name : HXCP

Dimensions : 1500×860×1100mm(L×W×H)

Model Number : HX20EPL

Elastic Width Range : 6-30mm

Loop Diameter Range : 3-10mm

Power : 2.5Kw

Cover Length Range : 100-300mm

Supply Ability : 10 sets/month

Place of Origin : China

Contact Now

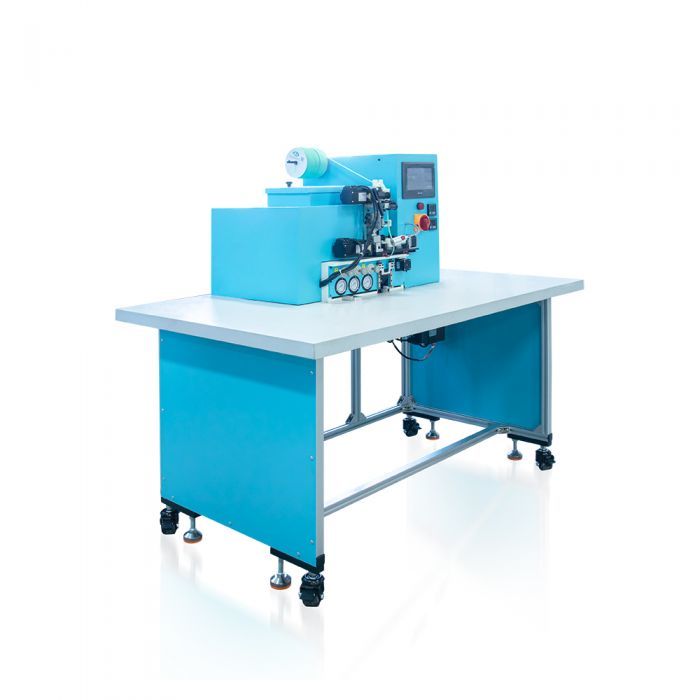

HX20EPL Semi Auto Elastic Pen Loop Applying Machine

HX20EPL Semi Auto Elastic Pen Loop Applying Machine is a specialized machine designed to apply one elastic pen loop onto notebook

Description

HX20EPL Semi Auto Elastic Pen Loop Applying Machine is a specialized machine designed to apply one elastic pen loop onto notebook, agenda, or diary cases or onto already cased-in products by hot-melt glue. Manual positioning of the flat covers or notebooks already cased in on the feeder, cutting off the elastic band directly from the roll, automatic positioning of the elastic band and threading of the same in the cuts previously done, automatic hot-melt gluing and pressing of the elastic, then delivery of the final product back to the operator to maintain the safety of the operation.

Parameters

Cover Length Range	100-300mm	Case Thickness Range	1-3.5mm
Elastic Width Range	6-30mm	Loop Diameter Range	3-10mm
Capacity	1000-1200pcs/h	Voltage	220V, 50/60Hz
Power	2.5Kw	Dimensions	1500×860×1100mm(L×W×H)

Products Show

HX20EPL Semi Auto Elastic Pen Loop Applying Machine is a specialized machine designed to apply one elastic pen loop onto notebook

Details

HX20EPL Semi Auto Elastic Pen Loop Applying Machine is a specialized machine designed to apply one elastic pen loop onto notebook
